Why Slope Retaining Walls Need Dedicated Drainage

A retaining wall on a slope is holding back water as much as soil. Drainage solutions relieve the hydrostatic pressure that builds up behind the wall after rain, and without them, even a well-built wall will eventually fail. The team at FDSS landscaping and building services has constructed retaining walls across the Hills District and North-West Sydney, and we understand the consequences of poor drainage planning.

When soil becomes saturated, its weight increases dramatically and lateral pressure on the wall multiplies. This guide explains the drainage components, installation sequence, and engineering considerations that keep a slope retaining wall stable for decades.

Understanding Hydrostatic Pressure and Wall Failure

Hydrostatic pressure is the force exerted by standing water against a structure, and it is the primary cause of retaining wall failure on slopes. When rainwater soaks into the backfill, it cannot escape through the impermeable wall face. The trapped water pushes against the structure with force that increases with depth, creating pressure far greater than the weight of the soil alone.

Signs of a wall struggling with poor drainage are usually visible before catastrophic failure: cracks running horizontally or diagonally, a wall that bows or leans outward, bulging sections between supports, or soil washing out around the base. Efflorescence, a white chalky residue on the wall face, indicates water is migrating through the concrete or blocks. When these symptoms appear, the drainage system has likely failed.

Core Components of a Drainage System

An effective system combines several elements that work together to collect and redirect water: a perforated pipe, drainage gravel or aggregate, geotextile filter fabric, and a clear outlet path.

The perforated pipe is the backbone of the system. Laid along the base of the wall, it collects water that drains down through the backfill and carries it to a safe discharge point. The drainage gravel, typically 20mm blue metal or similar clean aggregate, surrounds the pipe and creates a high-permeability zone for water to flow freely downward. Geotextile filter fabric wraps the gravel to prevent fine soil particles from migrating into the drainage zone and clogging it over time.

Weep holes provide an additional escape route through the wall face itself, allowing water to exit if the base drainage becomes overwhelmed. A well-designed system routes water to a drainage outlet, stormwater connection, or a low point in the landscape where it can disperse safely without eroding the slope below.

Retaining Wall Drainage Pipe Installation Steps

Proper installation follows a clear sequence, and each step matters for the long-term performance of the wall on a slope. Getting the details right, trench dimensions, material specifications, and fall ratios, separates a system that works for decades from one that fails within a few seasons.

Step 1: Prepare the foundation trench. Excavate a level base trench wide enough for the wall footing plus the drainage zone behind it. For a standard block wall, this typically means a trench roughly 600mm wide, 400mm for the footing and an additional 200mm behind it for the drainage aggregate. On sloped sites, the trench base must be cut into stable ground, never built on loose fill, and must fall consistently toward the outlet location.

Step 2: Lay the wall footing. Pour or set the footing according to the engineered design, allowing the correct width and depth for the wall height. A common footing for a 1-metre wall is 400mm wide and 200mm deep, but this varies with soil conditions and wall type. The top of the footing should sit below finished ground level so the first course of blocks is partially buried.

Step 3: Place the first course of blocks or panels. The base course must be perfectly level, as every subsequent course follows its line. Use a spirit level across both axes and check against a string line, a 5mm error at the base becomes a visible lean at the top of a 1-metre wall.

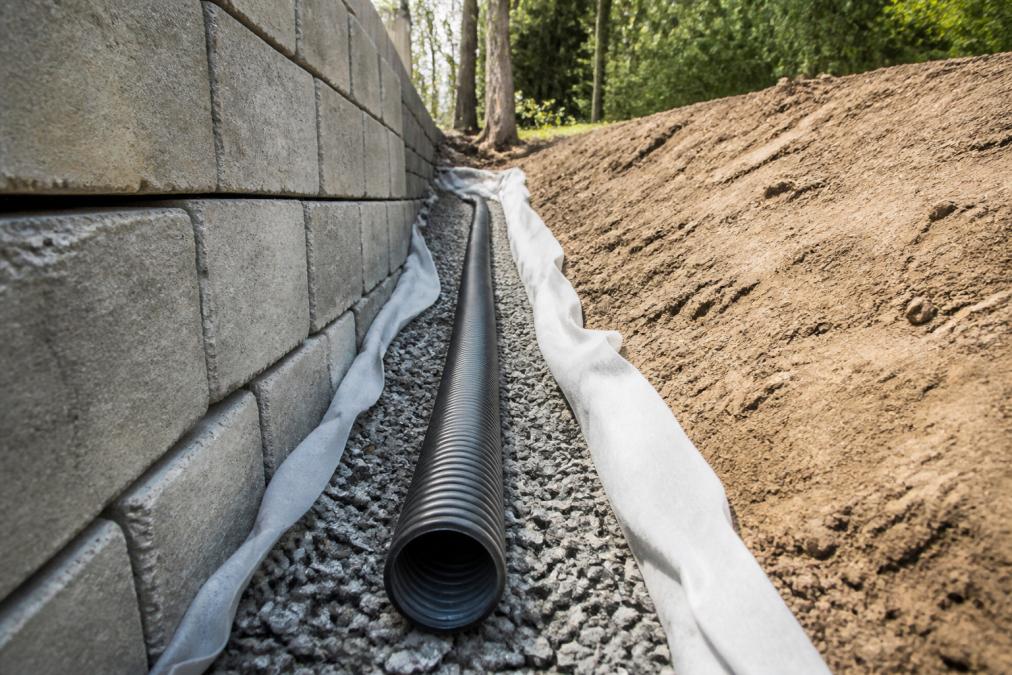

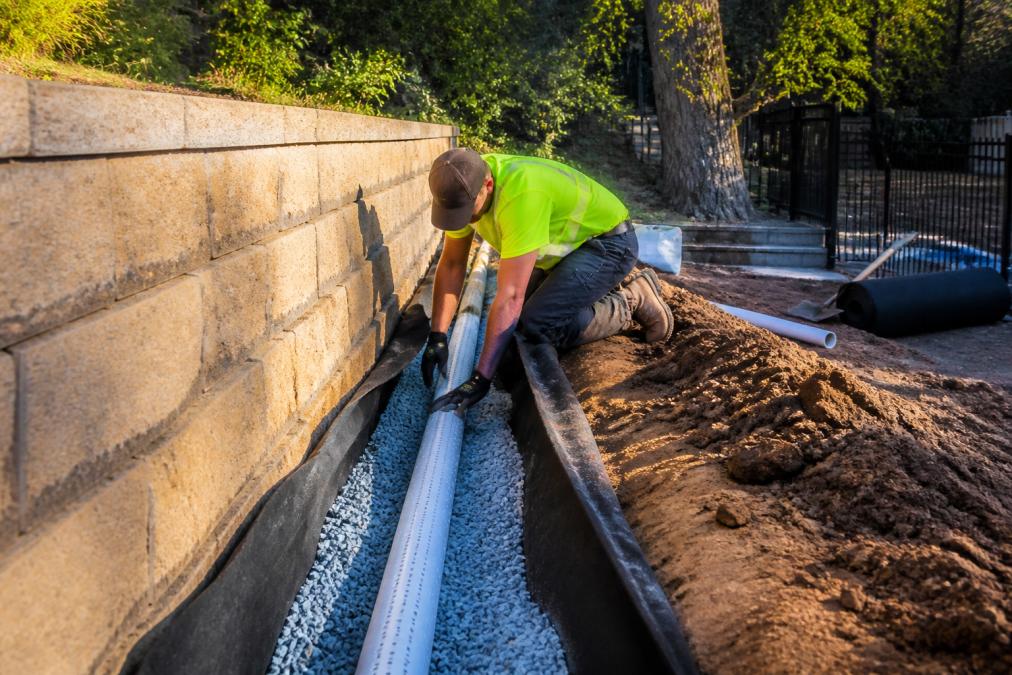

Step 4: Install the perforated pipe. Lay the pipe along the back of the footing with the perforations facing downward, holes facing down collect water from below rather than allowing sediment to settle into them from above. Use 100mm diameter perforated agricultural pipe (AG pipe) or slotted PVC pipe, depending on the wall design and expected water volume. The pipe must have a consistent slope of roughly 1:50, or about 20mm per metre, toward the drainage outlet. Check the fall with a string line and level before backfilling.

Step 5: Wrap the pipe in geotextile fabric. The fabric should line the trench sides and base, extending up the back of the wall cavity. Use a quality non-woven geotextile with suitable puncture resistance for the aggregate. The fabric lets water pass while holding back fine soil particles that would otherwise clog the drainage zone. Overlap joins by at least 300mm.

Step 6: Backfill with drainage gravel. Fill the space behind the wall with clean 20mm blue metal or similar washed aggregate, placing it in layers and compacting lightly. The gravel should extend from the footing base to within 300mm of the top of the wall. Do not use crusher dust, sand, or unwashed fill, these contain fines that will migrate into the pipe and block it. The drainage zone should be a minimum of 200mm wide behind the wall.

Step 7: Fold the fabric over the gravel. This closes the drainage zone and prevents surface soil from washing down into the aggregate. Overlap the fabric by at least 150mm at the top and secure it with landscape pins or by tucking it behind the backfill, creating a sealed envelope that only admits water, not soil.

Step 8: Backfill the remaining space with soil. Use suitable fill material and compact it in layers of no more than 150mm, compacting each layer before adding the next to prevent future settling. On sloped sites, shape this backfill to direct surface water away from the wall crest, a common oversight that sends runoff straight down behind the wall.

Step 9: Connect the outlet. Ensure the pipe discharges at a drainage outlet, stormwater connection point, or a low point in the landscape where water can disperse safely. Protect the outlet from blockages with a mesh cover or pop-up emitter, and use a splash pad or rock bed where it discharges onto the surface to prevent erosion. Connection to the stormwater system may require approval from the relevant council, so check requirements before finalising the outlet location.

A note on pipe bedding: some installers place the pipe directly on the compacted trench base, while others bed it in a shallow layer of gravel first. Bedding the pipe in 50mm of gravel provides more uniform support and reduces the risk of the pipe being crushed or distorted when the surrounding gravel is compacted. The additional cost is minimal, and the long-term reliability benefit is significant.

For taller walls or those on steep slopes, consider installing a second drainage pipe at mid-height. This intermediate drain intercepts water that would otherwise travel down the full height of the wall, reducing hydrostatic pressure at the base where it is most damaging. This approach is common in engineered designs for walls over 1.5 metres.

Retaining Wall Engineering Requirements for Sloped Sites

Retaining wall engineering requirements differ significantly on sloped sites compared to level ground, and this is where professional input becomes essential. A wall retaining a slope supports both the soil and any structures above it, including driveways, buildings, or neighbouring properties. The engineering design must account for the slope angle, soil type, groundwater conditions, and surcharge loads from anything above the wall.

In New South Wales, most retaining walls over 600mm in height require approval from the relevant council or authority. The specific requirements depend on the site, the wall location relative to boundaries, and the council's development control plan. Engineered designs are typically mandatory for walls above 1 metre or those supporting significant loads. Australian Standards relevant to earth-retaining structures and concrete construction will apply, but the exact compliance path depends on your site and council.

The engineering also determines the wall type itself. Gravity walls rely on mass for stability, cantilevered walls use a reinforced concrete base, and crib or gabion walls suit specific soil conditions. On steep slopes, a stepped or terraced wall design may reduce pressure and improve stability compared to a single tall wall.

Designing for Rainfall Patterns Across Greater Sydney

One factor that generic retaining wall guides overlook is how drainage design must respond to local rainfall patterns. Greater Sydney and the Hills District experience intense rainfall events alternating with dry periods, and this variability directly affects how a drainage system should be designed.
